[Copy] VOLVO new bucket tooth system no hammer used hammerless system easily assembly for skid steers,backhoe,excavators and wheel loaders

Short Description:

Volov construction equipment new tooth system as below.

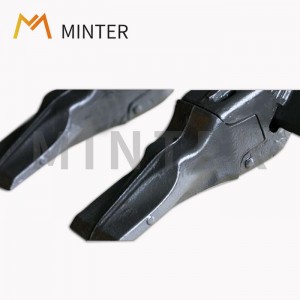

Volvo new bucket tooth system bring better properties when face combination of hard materials,shocks and high breakout forces due to its new design and shape.It optimized for the forces and wear to which it is exposed.So,it gives optimum service life with maintained performace.No hammer and easily assembly.Any inquiries or questions please contact us sales.


  • :
  • Product Detail

    Product Tags

    FOR LOADERS
    5GPC VOE 15603431 General purpose tooth
    8GPC VOE 15603435 General purpose tooth
    10GPL VOE 11417118 General purpose tooth
    15GPL VOE 11417125 General purpose tooth
    20GPL VOE 11417128 General purpose tooth
    30GPL VOE 11417134 General purpose tooth
    55GPL VOE 11417137 General purpose tooth
    10AML VOE 11417119 Abrasive material handling Tooth
    15AML VOE 11417126 Abrasive material handling Tooth
    20AML VOE 11417129 Abrasive material handling Tooth
    30AML VOE 11417135 Abrasive material handling Tooth
    55AML VOE 11417138 Abrasive material handling Tooth
    15AMXL VOE 11417127 Tooth for abrasive material handling with extra large bottom
    20AMRL VOE 11438859 Tooth for abrasive material handling with extra large bottom
    30AMRL VOE 11417136 Tooth for abrasive material handling with extra large bottom
    40AMRL VOE 11438886 Tooth for abrasive material handling with extra large bottom
    55AMRL VOE 11417139 Tooth for abrasive material handling with extra large bottom
    LA5FC20 VOE 15633941 flush-mount adapter
    LA8FC20 VOE 15633938 flush-mount adapter
    LA10FC20 VOE 11417086 flush-mount adapter
    LA10FC25 VOE 11417088 flush-mount adapter
    LA15FC30 VOE 11417094 flush-mount adapter
    LA15FC35 VOE 11417097 flush-mount adapter
    LA20FC35 VOE 15052827 flush-mount adapter
    LA20FC40 VOE 11417105 flush-mount adapter
    LA30FC40 VOE 11417108 flush-mount adapter
    LA55FC65 VOE 11417116 flush-mount adapter
    LA10TL25 VOE 11417190 Top leg 1 1/2 (long top leg) adapters
    LA15TL30 VOE 11417095 Top leg 1 1/2 (long top leg) adapters
    LA15TL35 VOE 11417098 Top leg 1 1/2 (long top leg) adapters
    LA20TL35 VOE 15052849 Top leg 1 1/2 (long top leg) adapters
    LA20TL40 VOE 11417106 Top leg 1 1/2 (long top leg) adapters
    LA30TL40 VOE 11417109 Top leg 1 1/2 (long top leg) adapters
    LA40TL40 VOE 11438928 Top leg 1 1/2 (long top leg) adapters
    LA40TL50 VOE 11438929 Top leg 1 1/2 (long top leg) adapters
    LA55TL65 VOE 11417117 Top leg 1 1/2 (long top leg) adapters
    LA10BN20 VOE 11417087 Bolt-on adapter
    LA10BN25 VOE 11417089 Bolt-on adapter
    LA15BN30 VOE 11417096 Bolt-on adapter
    LA15BN35 VOE 11417099 Bolt-on adapter
    LA20BN35 VOE 15052776 Bolt-on adapter
    LA20BN40 VOE 11417107 Bolt-on adapter
    LA30BN40 VOE 11417115 Bolt-on adapter
    FOR EXCAVATORS
    5GPC VOE 15603431 General purpose tooth
    8GPC VOE 15603435 General purpose tooth
    15GPE VOE 14523551 General purpose tooth
    20GPE VOE 14523655 General purpose tooth
    30GPE VOE 14523552 General purpose tooth
    40GPE VOE 14523553 General purpose tooth
    55GPE VOE 14524191 General purpose tooth
    65GPE VOE 14526510 General purpose tooth
    80GPE VOE 14526511 General purpose tooth
    15AMRE VOE 14524192 Tooth with extra wear metal and longer service intended for rock and abrasion material.Self-sharpen
    20AMRE VOE 14526753 Tooth with extra wear metal and longer service intended for rock and abrasion material.Self-sharpen
    30AMRE VOE 14523946 Tooth with extra wear metal and longer service intended for rock and abrasion material.Self-sharpen
    40AMRE VOE 14526754 Tooth with extra wear metal and longer service intended for rock and abrasion material.Self-sharpen
    55AMRE VOE 14523656 Tooth with extra wear metal and longer service intended for rock and abrasion material.Self-sharpen
    65AMRE VOE 14522959 Tooth with extra wear metal and longer service intended for rock and abrasion material.Self-sharpen
    80AMRE VOE 14526512 Tooth with extra wear metal and longer service intended for rock and abrasion material.Self-sharpen
    125AMRE VOE 14595226 Tooth with extra wear metal and longer service intended for rock and abrasion material.Self-sharpen
    8PPC VOE 15625775 pick point tooth for work in extremely compact material.Maximum penetration capacity in hard clay,frozen ground.etc
    15PPE VOE 14530835 pick point tooth for work in extremely compact material.Maximum penetration capacity in hard clay,frozen ground.etc
    20PPE VOE 14531279 pick point tooth for work in extremely compact material.Maximum penetration capacity in hard clay,frozen ground.etc
    30PPE VOE 14526514 pick point tooth for work in extremely compact material.Maximum penetration capacity in hard clay,frozen ground.etc
    40PPE VOE 14526515 pick point tooth for work in extremely compact material.Maximum penetration capacity in hard clay,frozen ground.etc
    55PPE VOE 14526516 pick point tooth for work in extremely compact material.Maximum penetration capacity in hard clay,frozen ground.etc
    65PPE VOE 14526517 pick point tooth for work in extremely compact material.Maximum penetration capacity in hard clay,frozen ground.etc
    80PPE VOE 14526518 pick point tooth for work in extremely compact material.Maximum penetration capacity in hard clay,frozen ground.etc
    8TPC VOE 15625776 twin pick point tooth for work in extremely compact meterial. Maximum penetration capability in hard clay, frozen ground etc
    15TPE VOE 14530836 twin pick point tooth for work in extremely compact meterial. Maximum penetration capability in hard clay, frozen ground etc
    20TPE VOE 14531283 twin pick point tooth for work in extremely compact meterial. Maximum penetration capability in hard clay, frozen ground etc
    30TPE VOE 14530837 twin pick point tooth for work in extremely compact meterial. Maximum penetration capability in hard clay, frozen ground etc
    40TPE VOE 14530838 twin pick point tooth for work in extremely compact meterial. Maximum penetration capability in hard clay, frozen ground etc
    55TPE VOE 14530839 twin pick point tooth for work in extremely compact meterial. Maximum penetration capability in hard clay, frozen ground etc
    65TPE VOE 14530840 twin pick point tooth for work in extremely compact meterial. Maximum penetration capability in hard clay, frozen ground etc
    80TPE VOE 14531655 twin pick point tooth for work in extremely compact meterial. Maximum penetration capability in hard clay, frozen ground etc
    8SNC VOE 15625774163 twin pick point tooth for work in extremely compact meterial. Maximum penetration capability in hard clay, frozen ground etc
    15SNE VOE 14531280 spade nose tooth for levelling cleaning grading and backfiling.
    20SNE VOE 14531281 spade nose tooth for levelling cleaning grading and backfiling.
    30SNE VOE 14530841 spade nose tooth for levelling cleaning grading and backfiling.
    40SNE VOE 14530842 spade nose tooth for levelling cleaning grading and backfiling.
    55SNE VOE 14530843 spade nose tooth for levelling cleaning grading and backfiling.
    65SNE VOE 14531282 spade nose tooth for levelling cleaning grading and backfiling.
    EA8BL20 VOE 15633940 1 1/2 bottom leg adapter(long bottom leg) for welding to both sides of the cutting edge
    EA15BL30 VOE 14522960 1 1/2 bottom leg adapter(long bottom leg) for welding to both sides of the cutting edge
    EA20BL40 VOE 14522961 1 1/2 bottom leg adapter(long bottom leg) for welding to both sides of the cutting edge
    EA30BL40 VOE 14522962 1 1/2 bottom leg adapter(long bottom leg) for welding to both sides of the cutting edge
    EA40BL50 VOE 14522963 1 1/2 bottom leg adapter(long bottom leg) for welding to both sides of the cutting edge
    EA55BLX50 VOE 15034957 1 1/2 bottom leg adapter(long bottom leg) for welding to both sides of the cutting edge
    EA65BL50 VOE 14526776 1 1/2 bottom leg adapter(long bottom leg) for welding to both sides of the cutting edge
    EA65BL60 VOE 14522964 1 1/2 bottom leg adapter(long bottom leg) for welding to both sides of the cutting edge
    EA80BL65 VOE 14526788 1 1/2 bottom leg adapter(long bottom leg) for welding to both sides of the cutting edge
    EA80BL70 VOE 14526509 1 1/2 bottom leg adapter(long bottom leg) for welding to both sides of the cutting edge
    EA5BLU VOE 15633939 weld-on bottom leg universal adapter
    EA20BLX30 VOE 14595188 bottom leg adapter with extra long top leg for welding to both sides of the cutting edge
    EA30BLX40 VOE 14595189 bottom leg adapter with extra long top leg for welding to both sides of the cutting edge
    EA55BLX50 VOE 15034957 bottom leg adapter with extra long top leg for welding to both sides of the cutting edge
    EA40BLW40 VOE 14595190 bottom leg adapter for wear cap with extra long top leg for both sides of cutting edge
    EA55BLW50 VOE 14595191 bottom leg adapter for wear cap with extra long top leg for both sides of cutting edge
    EA65BLW50 VOE 14595192 bottom leg adapter for wear cap with extra long top leg for both sides of cutting edge
    EA80BLW60 VOE 14595193 bottom leg adapter for wear cap with extra long top leg for both sides of cutting edge
    EA125BLW70 VOE 14595194 bottom leg adapter for wear cap with extra long top leg for both sides of cutting edge
    40W VOE 14595195 wear cap protects the adapter from unnecessary wear
    55W VOE 14595196 wear cap protects the adapter from unnecessary wear
    65W VOE 14595197 wear cap protects the adapter from unnecessary wear
    80W VOE 14595198 wear cap protects the adapter from unnecessary wear
    125W VOE 14595199 wear cap protects the adapter from unnecessary wear
    5/8P VOE 15603422 Locking device, complete*)
    5/8R VOE 15603429 Retainer, standard
    15P VOE 11417145 Locking device, complete*)
    15/20R VOE 11417316 Retainer, standard
    15/20MR VOE 11716119 Retainer, heavy duty
    20P VOE 11417146 Locking device, complete*)
    15/20R VOE 11417316 Retainer, standard
    15/20MR VOE 11716119 Retainer, heavy duty
    30P VOE 11417147 Locking device, complete*)
    30/40R VOE 11417317 Retainer, standard
    30/40MR VOE 11716120 Retainer, heavy duty
    40P VOE 14524860 Locking device, complete*)
    30/40R VOE 11417317 Retainer, standard
    30/40MR VOE 11716120 Retainer, heavy duty
    55P VOE 11417148 Locking device, complete*)
    55/65R VOE 11417318 Retainer, standard
    55/65MR VOE 11716121 Retainer, heavy duty
    65P VOE 14524710 Locking device, complete*)
    55/65R VOE 11417318 Retainer, standard
    55/65MR VOE 11716121 Retainer, heavy duty
    80P VOE 14524711 Locking device, complete*)
    80/125R VOE 14526513 Retainer, standard
    80MR VOE 11716122 Retainer, heavy duty
    125P VOE 14595225 Locking device, complete*)
    80/125R VOE 14526513 Retainer, standard
    80MR VOE 11716122 Retainer, heavy duty

    Part Description

    Mechanical Property

    Teeth

    Hardness HRC48-52, Impact strength(room temperature)≥18J

    Adapter

    Hardness HRC36-44, Impact strength(room temperature)≥20J

    Grader Blades C80

    Hardness HB280-320,Impact Strength≥7J(room temperature)

    Cutting Edge 30MnB

    Hardness HB440-480,Impact Strength≥25J(room temperature)

    Cutting Edge 16Mn

    Hardness HB330-370,Impact Strength≥40J(room temperature)



    Advantage

    1. Fast Delivery Time, lead time is around 35-40days.if stock availability, within one week.

    2. Large Inventory, more than 5,000 items.

    3. Strict Quality Management, testing hardness, impact strength, and test matchable one by one.

    4. High impact strength and more wear material

    5. Much more reasonable price

    6. Professional, our factory has more than 20-year history on g.e.t field.

    Quality Management

    Impact testing

    Impact Testing

    spectrograph

    Spectrograph

    Hardness testing device

    Tensile

    tensile strength testing device

    hardness

    Stock Picture

    stock-1
    stock-3-4
    stock-2

    Shipment Picture

    shipment-1
    shipment-1
    shipment-1
    shipment-2

    Production Process

    1-Mould Design

    1-Mould Design

    2-Mould Processing

    2-Mould Processing

    3-Wax Model Making

    3-Wax Model Making

    4-Tree Assembly

    4-Tree Assembly

    5-Shell Building

    5-Shell Building

    6-Pouring

    6-Pouring

    7-Sprue Removal

    7-Sprue Removal

    8-Heat Treatment

    8-Heat Treatment

    9-Product Testing

    9-Product Testing

    10-Painting

    10-Painting

    11-Package

    11-Package

    About MINTER Profile

    Ningbo Minter Machinery Co.,Ltd is a professional G.E.T located in China.Main products are Bucket teeth,adapter,cutting edge,bolt&nut,pin&retainer Chocky Bars and bucket wear protection. We provide direct replacement parts can be used for excavator,loader,bulldozers,scarifier,grader and snow plows,both construction sector and minning sector.
    suit for most machinery brand like Caterpillar,Komatsu, Hitachi, Hyundai,Doosan,Volvo,JCB and some for Chinese machinery such as Sany XCMG,Liugong and so on.
    There are complete & professional facilities in each production process.And we pay more attention to high standard for details from raw material selection to goods package and shipping. We are strict with delivery time.And our aime is simple,Committing to provide consistent high quality spare parts with excellent service for customers,to meet customers’ requirements and make effort to enlarge their market share and establish long-term cooperation with customers.
    With strong technology term back-up and rich knowledge&experience on this field,we are able to provide R&D development to meet costomization requirement.
    We focus on this industry. Join us to explore market together and pursuing what we want!

    Q & A

    1. What’s your delivery time?

    Firstly, we will check our stock if availability, if no stocks, lead time is around 35-40days.

    2.What’s your quality warranty ?

    Promise no breakage happens.

    Once breakage happens, we will have our technique team check and analyze. we will replace one by one for free if we should be responsible.

    3.What kind of products you can offer ?

    We are specialized in providing G.E.T parts like bucket teeth, adapter, cutting edge, side cutter, Protector, shank, ripper teeth, shank guard, fastners like bolt, nut,pin and retainers. Mainly for heavy machinery like excavators, loaders, dozers, motor graders and scrarifiers.

    4.Are you a Manufacturer ?

    Yes, we are a manufacturer located in Ningbo China. And we welcome to visit our factory.

    5.Do you have Moq ?

    No Moq. But if order quantity is less than 3tons, we have to surcharged for inland freight charge, port operation charge, file charge, export declaration charge etc..

    6.What’s the biggest parts you can offer ?

    We can provide PC1250, Caterpillar J800 spare parts,81 series as well. We are also striving into minning industry, expecting bigger parts can be casted later soon.
