How to smelt the metal ?

An induction furnace is an electrical furnace in which the heat is applied by induction heating of metal.[1][2][3] Induction furnace capacities range from less than one kilogram to one hundred tonnes, and are used to melt iron and steel, copper, aluminum, and precious metals.

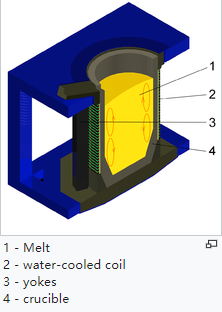

Furnace

The advantage of the induction furnace is a clean, energy-efficient and well-controllable melting process compared to most other means of metal melting.

Most modern foundries use this type of furnace, and now also more iron foundries are replacing cupolas with induction furnaces to melt cast iron, as the former emit much dust and other pollutants.

Since no arc or combustion is used, the temperature of the material is no higher than required to melt it; this can prevent loss of valuable alloying elements.

The one major drawback to induction furnace usage in a foundry is the lack of refining capacity; charge materials must be clean of oxidation products and of a known composition and some alloying elements may be lost due to oxidation (and must be re-added to the melt).

An induction furnace consists of a nonconductive crucible holding the charge of metal to be melted, surrounded by a coil of copper wire. A powerful alternating current flows through the wire. The coil creates a rapidly reversing magnetic field that penetrates the metal. The magnetic field induces eddy currents, circular electric currents, inside the metal, by electromagnetic induction.[9] The eddy currents, flowing through the electrical resistance of the bulk metal, heat it by Joule heating. In ferromagnetic materials like iron, the material may also be heated by magnetic hysteresis, the reversal of the molecular magnetic dipoles in the metal. Once melted, the eddy currents cause vigorous stirring of the melt, assuring good mixing.

An advantage of induction heating is that the heat is generated within the furnace’s charge itself rather than applied by a burning fuel or other external heat source, which can be important in applications where contamination is an issue.

Operating frequencies range from utility frequency (50 or 60 Hz) to 400 kHz or higher, usually depending on the material being melted, the capacity (volume) of the furnace and the melting speed required. Generally, the smaller the volume of the melts, the higher the frequency of the furnace used; this is due to the skin depth which is a measure of the distance an alternating current can penetrate beneath the surface of a conductor. For the same conductivity, the higher frequencies have a shallow skin depth—that is less penetration into the melt. Lower frequencies can generate stirring or turbulence in the metal.

Induction furnaces can be divied into three types:power frequency electric furnace,medium frequency electric furnace and intermediate frequency furnace. They are according to the frequency of the alternating current used. Chinese foundry normally use intermediate frequency furnace to manufacture G.E.T parts like bucket tooth,adapter and other bucket wear parts. The intermedia frequency furnace converts the power frequency 50HZ alternating current into an intermediate frequency(300HZ to more than 10000HZ). The higher the frequency, the lower the heat transfer capability. The intermediate frequency furnace can smelt 5kg-60tons of various metals,it has a large volume and mature technology.
